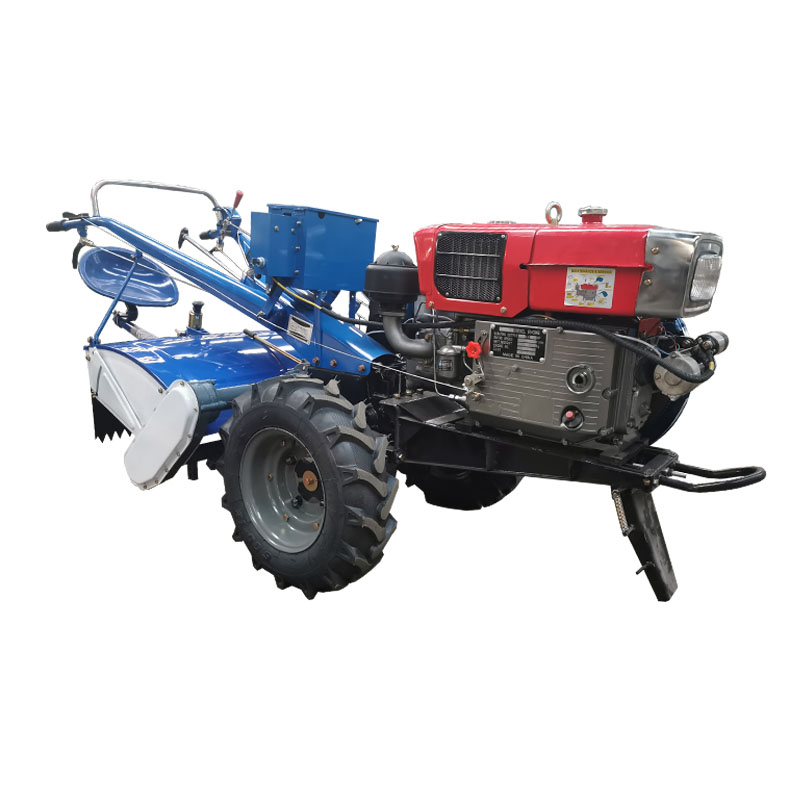

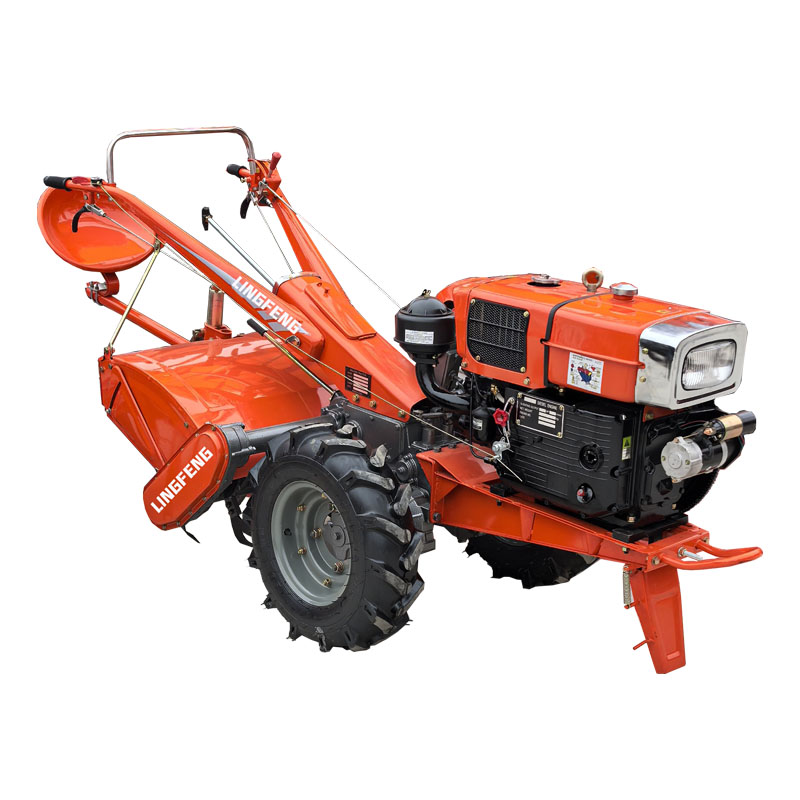

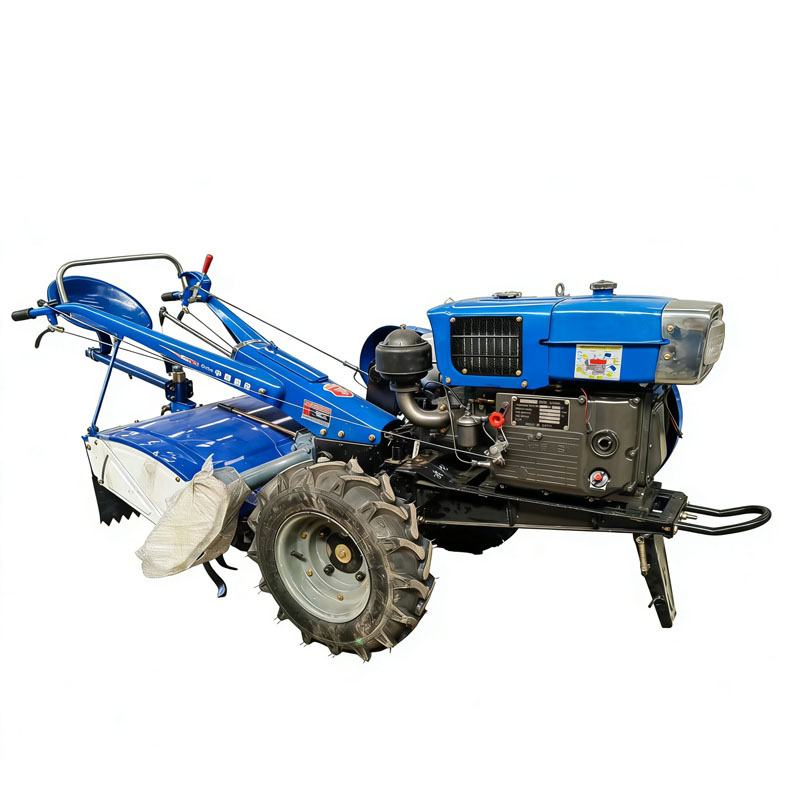

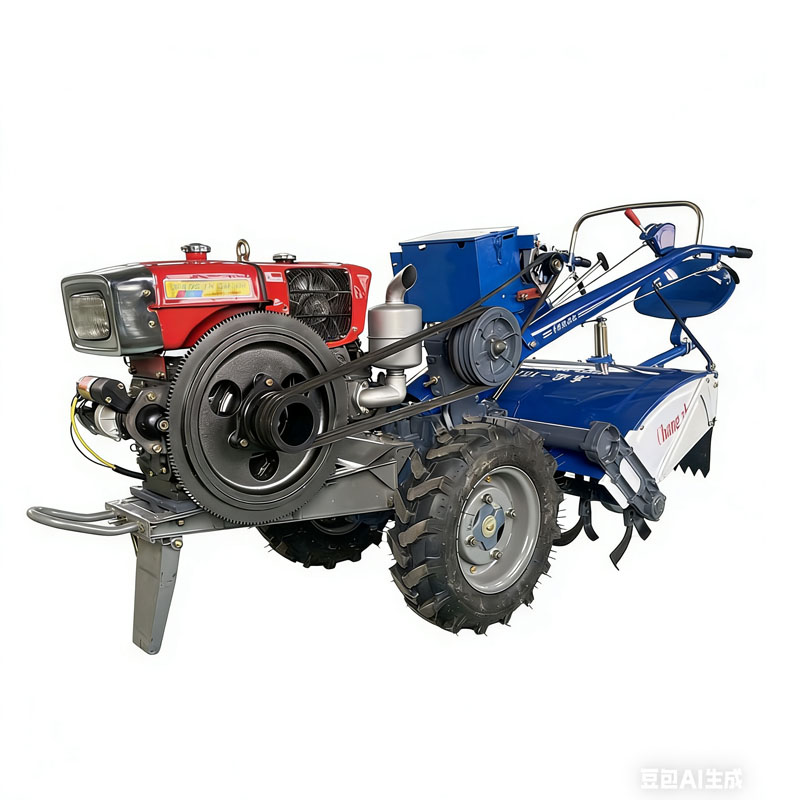

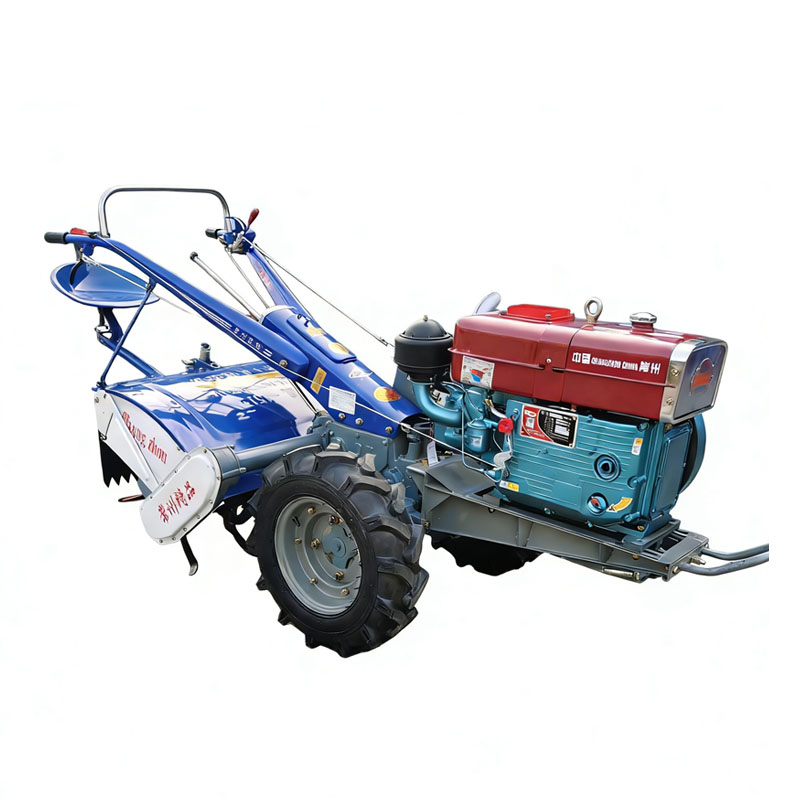

Walking Tractir151

Product Overview

The tractor-mounted cultivator is a multi-functional agricultural machinery. With its compact size, flexibility and powerful engine, it has become an efficient assistant for small-scale agricultural operations. It is widely applicable to various terrains such as plains, mountains, hills, as well as special operation scenarios like orchards, greenhouses, terraced fields, etc., and can meet various agricultural production needs including plowing, sowing, fertilizing and transportation.

Product features

- Powerful performance: Typically equipped with 8-25 horsepower single-cylinder diesel engines, the power output is stable and the fuel economy is good, meeting the power requirements for various operations.

- Flexible operation: It adopts a hand-held operation mode, with flexible steering, allowing for easy U-turns in narrow spaces and suitable for small plots of land and complex terrain operations. Some models also add support wheels and seats, transforming into a seat-type tractor, improving the working conditions of the driver.

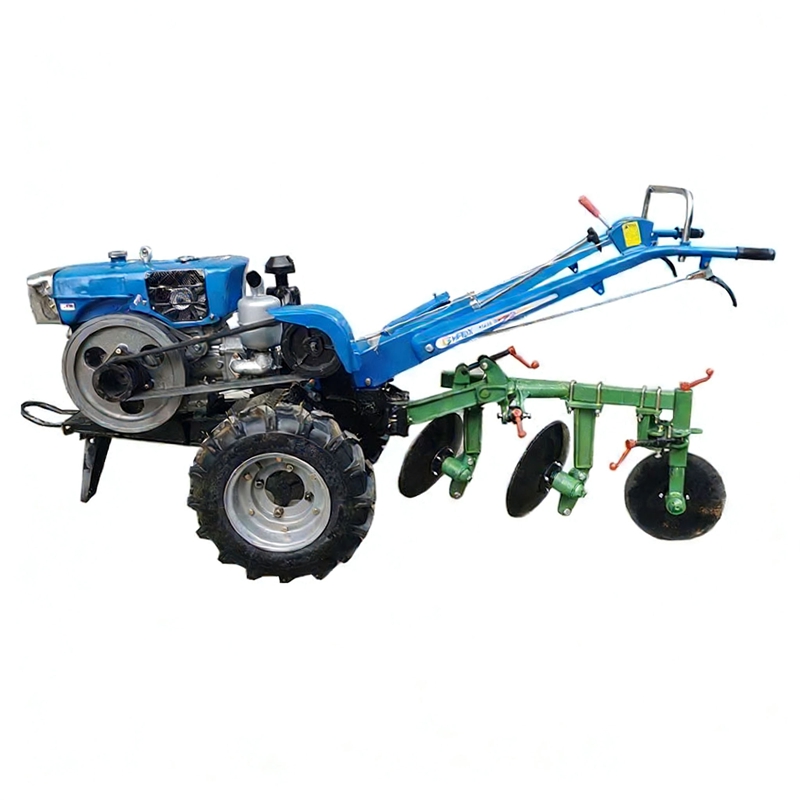

- Multi-functional: It can be combined with various agricultural implements through a quick coupling device to achieve one-stop agricultural operations such as plowing, sowing, cultivation, harvesting, and transportation. For example, when paired with a moldboard plow or a rotary tiller, it can perform plowing operations; when combined with a seeder or a fertilizer applicator, it can complete sowing and fertilization; when equipped with a trailer, it can also transport agricultural supplies and agricultural products.

- Good durability: The body is thickened, using chain and gear transmission, and key components such as the cutting tools are forged from 65 manganese steel, which is wear-resistant and durable, with a long service life. The integral cast iron gearbox has good rigidity and high precision, and is not prone to deformation.

Technical Specifications

Project Parameters

Power Type: Diesel Engine

Power Range: 8 - 22 horsepower

Transmission: Gear Transmission

Gears: Multiple gears for forward and reverse

Tire Specifications: Available in 600-12/600-14 and other high-groove off-road tires

Overall Weight: 360 - 450 kg

Dimensions: Approximately 2680 x 960 x 1250 mm (slightly different for different models)

Soil Depth: 15 - 25 cm (when used with rotary tillers and other agricultural tools)

Soil Width: 900 - 1000 mm (adjustable, depending on the agricultural tools and model)

Adapted farming tools

- Farmland equipment: Furrow plow, rotary tiller, used for deep plowing, soil crushing and land turning.

- Sowing equipment: Corn sowing machine, wheat sowing machine, potato sowing machine, peanut sowing machine, enabling simultaneous sowing and fertilization.

- Management equipment: Furrowing machine, disc weeder, meeting the field management needs during the growth period of crops.

- Harvesting equipment: Potato harvester, corn cutter deck, peanut harvester, potato harvester, etc., assisting in the harvesting of tuber crops and straw crops.

- Transportation equipment: Trailer, capable of transporting agricultural supplies and agricultural products, with a load capacity of 1000-2000kg.

After-sales service

- Offer one-year warranty service for core components.

- Professional engineers provide technical support to help customers solve problems encountered during use.

- Provide mechanical test reports to ensure product quality reliability.

- Accept various payment methods, such as wire transfer, letter of credit, credit card, etc.

- Support various delivery conditions, such as FOB, CFR, CIF, etc.

Model: LF151

Overall dimensions: 2680*960*1250mm

Traction force: 2400N

Matching power: 15/18/20/22HP

Minimum ground clearance: 185mm

Clutch type: Dual-plate constant-combination friction type

Steering type: Gear-engaging sleeve type

Braking type: Ring-shaped internal expansion type

V-belt: 4 B1880

Tire model: 6.00-12

Wheelbase: 580-800mm

Gear type: Standard

Type: Combined traction and drive
