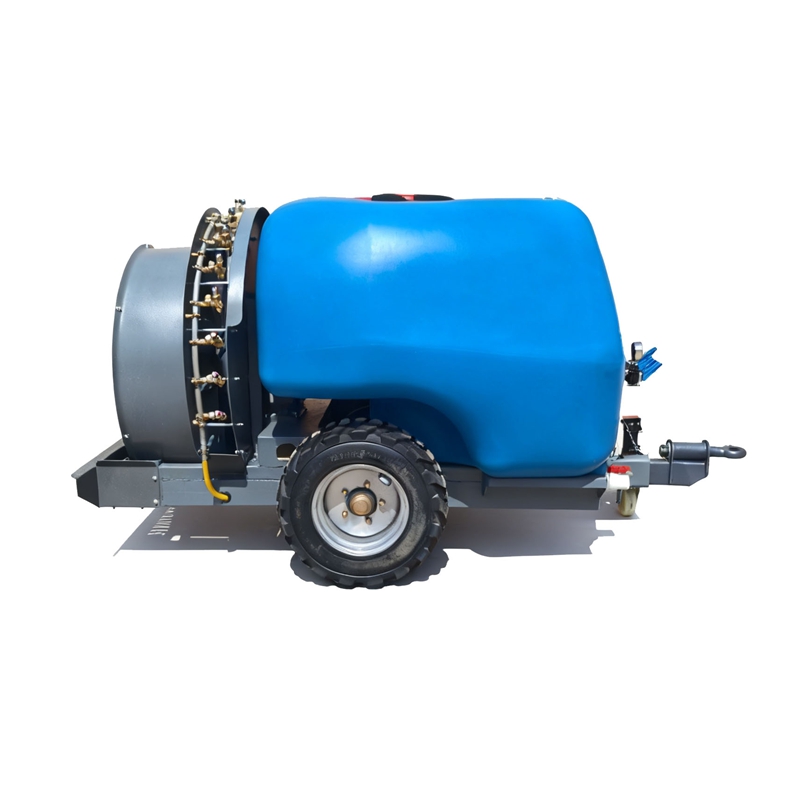

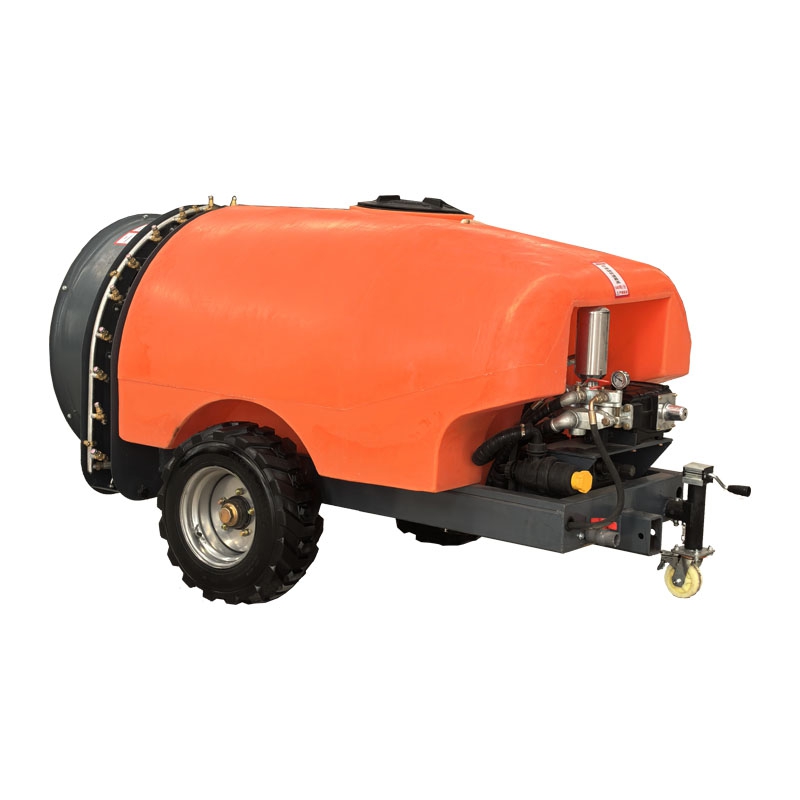

Traction Sprayer

Tractor-pulled sprayer

Tractor-pulled sprayer - An efficient pesticide application solution for large-scale cultivation

Core positioning:

Tractor-pulled high-efficiency pesticide application equipment for gardens and fields. Powerful air delivery combined with precise atomization. Suitable for continuous operations in large-scale planting bases. CE certification compliant. Perfectly compatible with tractor models. Helps farms improve pesticide application efficiency and reduce labor costs.

Core product advantages

The tractor is seamlessly connected and easy to install.

It adopts a standard three-point suspension towing device, which can quickly connect various tractors with power ranging from 40 to 120 HP. It can be put into operation within 15 minutes. The towing design does not occupy the carrying space of the tractor and does not affect the other functions of the vehicle.

2. High-power pneumatic conveying, with precise and seamless atomization

Equipped with a large fan, it generates a directional strong airflow, pushing 50-150 μm ultrafine droplets to the deep branches and leaves of the crops. The spray range can reach 15-30 meters. The adhesion of the droplets is enhanced by 80%, effectively preventing the drift of the pesticide solution. It enables uniform spraying on both the front and back sides, achieving a disease and pest control effect far superior to that of traditional sprayers.

3. Large-capacity battery life, suitable for large-scale operations

Equipped with 1000-2000L thickened food-grade PE liquid storage tanks, it can complete 50-150 acres of work with a single liquid addition. Combined with the tractor's long-lasting power, it supports continuous pesticide application throughout the day, eliminating the need for frequent return trips to add more liquid, significantly improving the work efficiency.

4. Intelligent control, making the operation more convenient

The driver's seat offers remote one-click control for starting and stopping, as well as a group switch for the nozzles. All operations can be completed without getting out of the vehicle. During the operation, parameters can be adjusted in real time according to the height and density of the crops, making it suitable for different planting scenarios.

5. Durable and reliable, suitable for harsh outdoor conditions

The fuselage is made of thickened square tube welded frame, which is treated with electrostatic powder coating for rust prevention. It is resistant to acid and alkali and can withstand impacts. The high-pressure pipeline is made of wear-resistant rubber material, with strong pressure resistance. The copper drip-proof and leakage-proof nozzle has a long service life and can be used for long-term outdoor operations in complex terrains such as mountains and hills.

6. CE certification compliance, no worries about exports

Comply strictly with the EU agricultural machinery safety and quality standards. Equipped with protective nets for fans, explosion-proof valves for pipelines, emergency braking devices and other safety configurations. Provide complete CE certification documents. Can be directly exported to overseas markets. The customs clearance process is convenient. Adapts to local agricultural production safety regulations.

II. Core Technical Parameters

Project General Parameters (Multiple models available / Customizable options)

Matching tractor power: 40 - 120 HP

Transmission method: Rear output shaft transmission

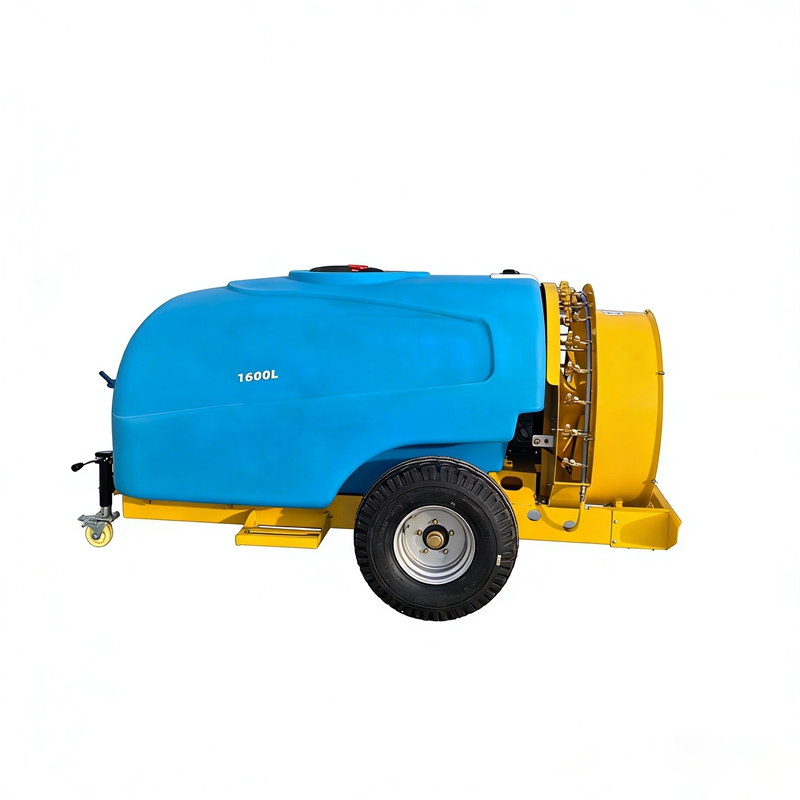

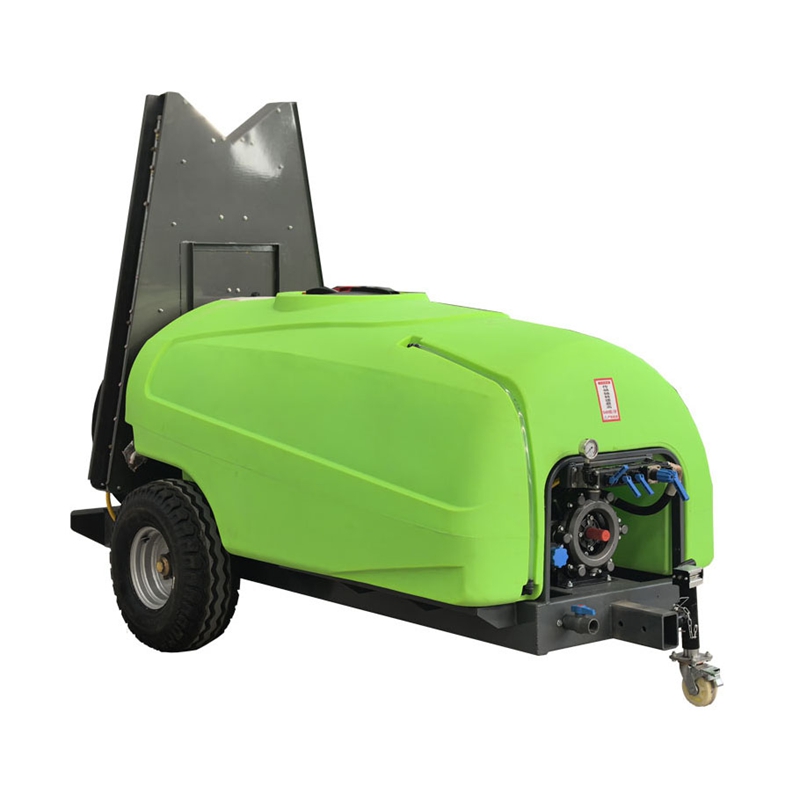

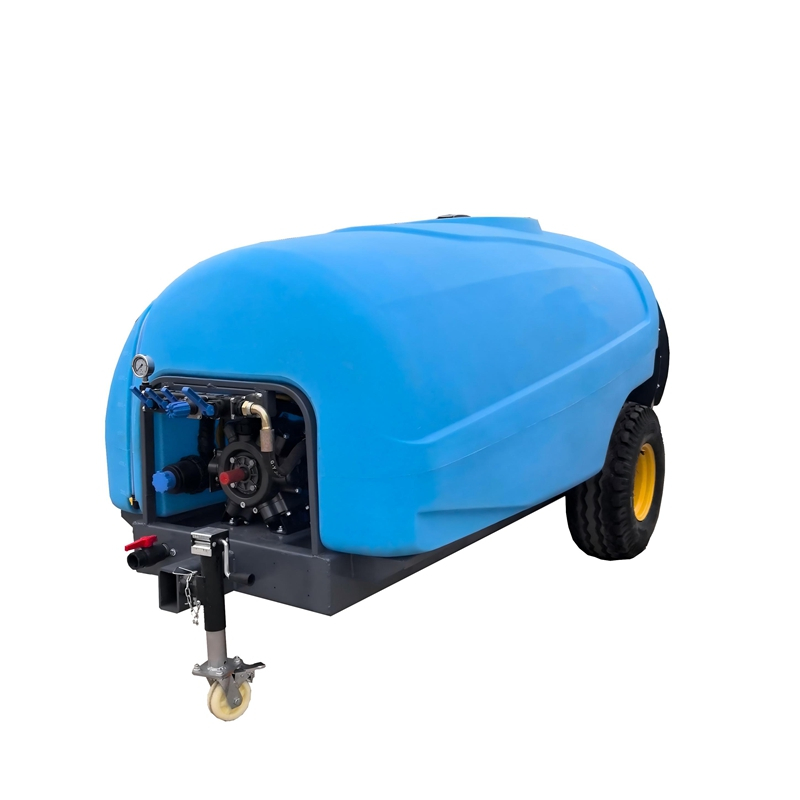

Storage tank volume: 1000L / 1600L / 2000L (Food-grade PE material)

Working width: 15 - 30 meters (Directional wind spraying, angle 0 - 360° adjustable)

Atomization particles: 50 - 150 μm (Anti-drift ultra-fine mist)

Fan diameter: 800/900mm

Nozzle quantity: 16 - 20 (Copper-made drip-proof atomizing nozzles, group control available)

Application efficiency: 20 - 40 acres per hour

Control method: Driver's position control (optional)

Overall machine weight: 400 - 600 kg (dependent on model)

Core certification: CE certification

Additional configurations: Liquid mixing device, liquid level gauge, nozzle anti-blockage design

III. Core Functions and Applicable Scenarios

Core Function

✅ Efficient Traction Operation: Utilizing the power of tractors, it enables rapid pesticide application on large-scale plots, with efficiency being over 10 times that of manual operation.

✅ Precise Air-Suction Atomization: Strong airflow penetrates the crop canopy, ensuring uniform attachment of droplets and reducing waste of pesticide, lowering the cost by 50%.

✅ Flexible Parameter Adjustment: The spray width, air volume, and flow rate can all be adjusted as needed, suitable for different growth stages and planting densities of crops.

✅ Long-Range Continuous Operation: Large-capacity liquid storage tank + continuous power supply from the tractor, meeting the all-day operation needs of large farms.

✅ Safe and Convenient Control: Avoiding contact of operators with pesticide, ensuring personal safety.

Applicable scenarios

✅ Large-scale orchards (juice fruit, apple, pear, grape, kiwi, etc. mature orchards)

✅ Large-scale farmland crops (corn, cotton, sugarcane, peanuts, sorghum, etc. medium to tall crops)

✅ Economic forests, nurseries, tea gardens (large-scale planting bases)

✅ Forest farms, greening seedling bases (large-scale pest and disease control)

✅ Breeding farms, large-scale storage sites (large-scale disinfection operations)
