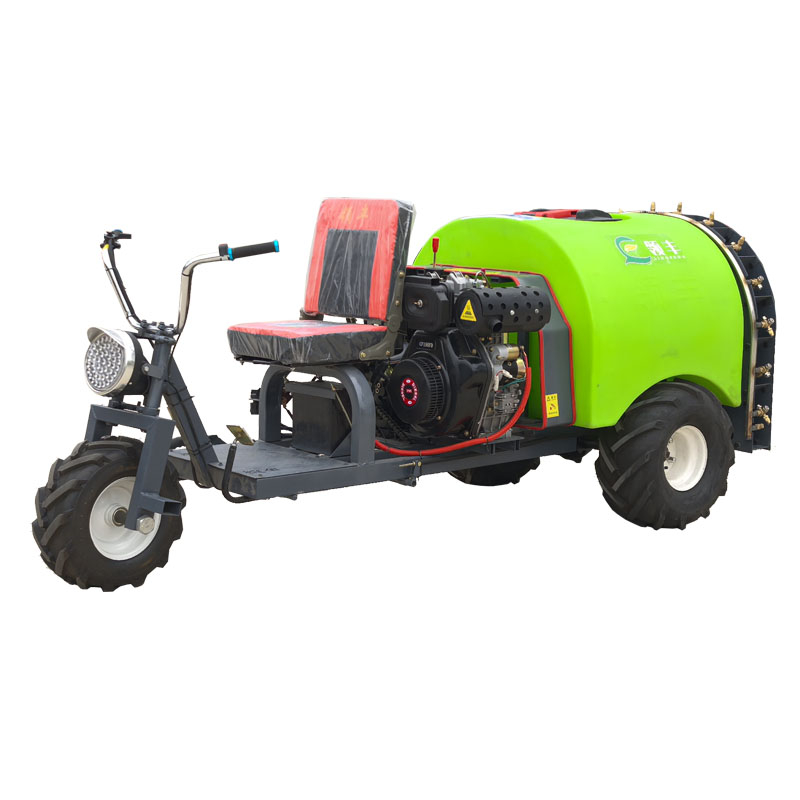

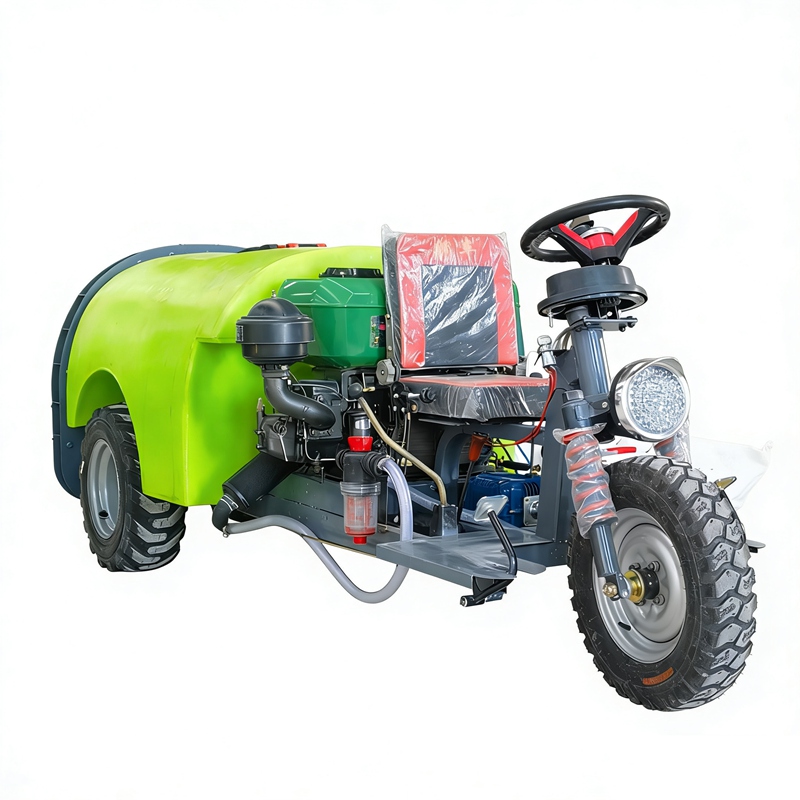

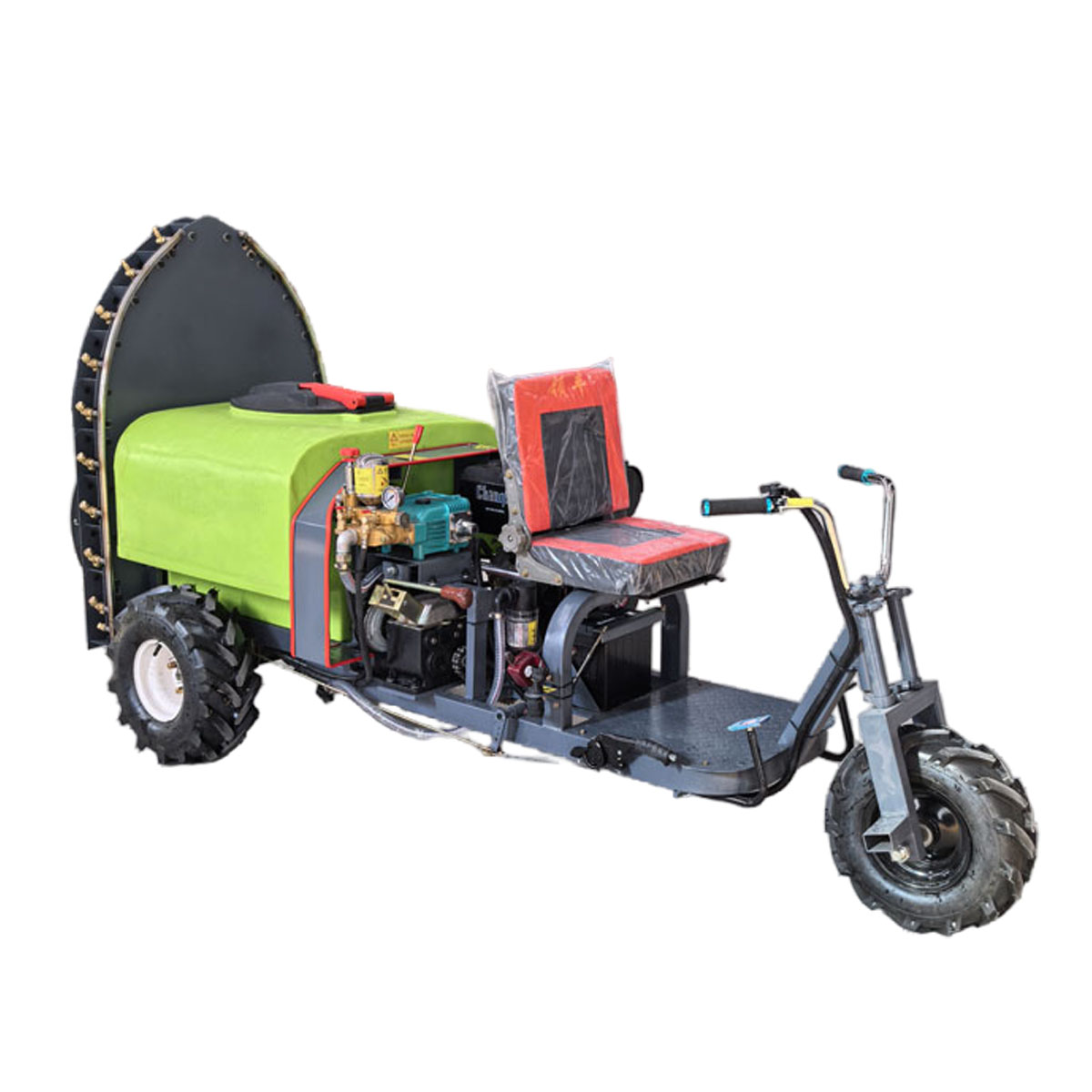

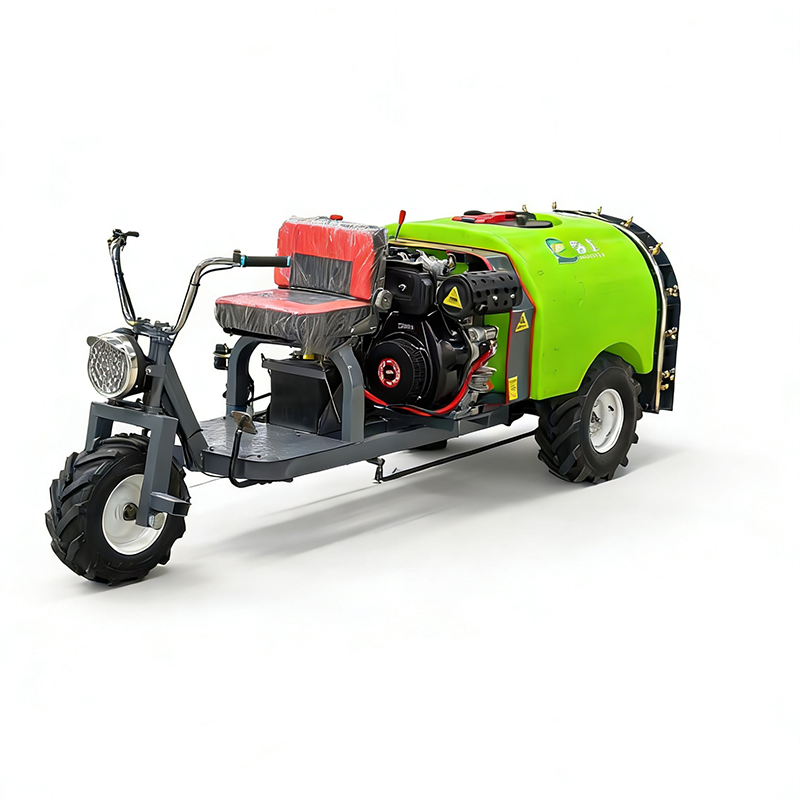

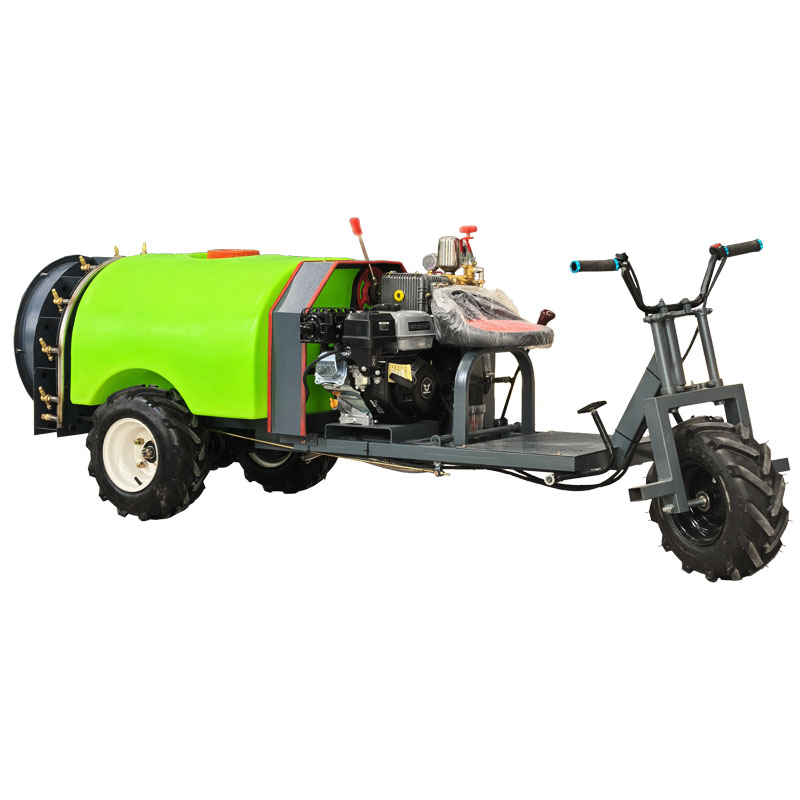

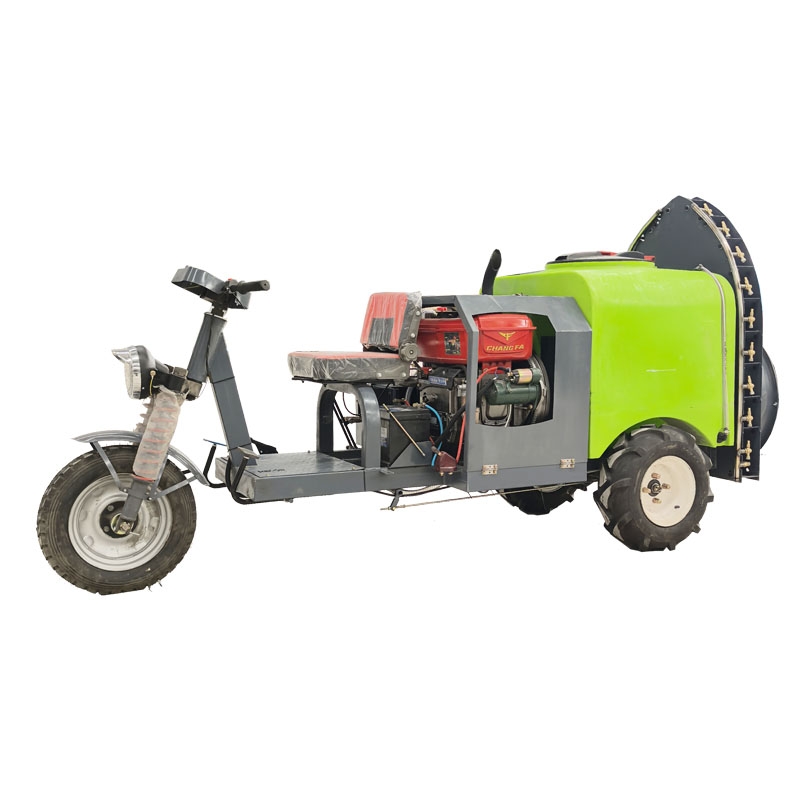

Self-propelled Sprayer

Self-propelled power sprayer

Core positioning: A professional-grade pesticide application equipment integrating vehicle-mounted operation and a high-power power system. It offers comfortable driving and operation, is highly efficient, and is suitable for large-scale orchards or large fields for extensive operations. It is CE-certified compliant and can meet the high-intensity pesticide application needs of large-scale planting bases and farms.

I. Core Product Advantages

1. The vehicle-style design offers comfortable and effortless driving: equipped with ergonomic seats to prevent fatigue from prolonged standing or manual pushing. With continuous operation for 8 hours, there is no pressure, significantly enhancing the operational experience.

2. High-power independent power supply, powerful performance: equipped with a 12-30HP diesel engine, independently driving the movement, fan, and atomization system. The power output is stable, and it does not rely on external vehicles. The spraying efficiency reaches 15-25 acres per hour.

3. Air-assisted atomization, precise and without blind spots: with a large-power centrifugal fan and high-pressure plunger pump, it generates a directional strong airflow, pushing 50-120μm ultra-fine droplets to the deep branches and leaves of the crops. The spray width is 12-25 meters, the adhesion of the droplets is increased by 80%, without drift or blind spots in spraying.

4. Flexible operation, strong terrain adaptability, small turning radius, can easily navigate through the row spacing of large-scale orchards, strong climbing ability (≤45°), stable operation in complex terrains such as muddy, sloping, and terraced fields.

5. Large capacity battery life, suitable for high-intensity operations: 200-500L thick food-grade PE liquid storage tank, supporting continuous operation throughout the day.

6. Durable and robust, adaptable to outdoor harsh environments: the body is welded with thick steel plates and coated with electrostatic powder for rust prevention. The chassis is reinforced, and the tires are high-groove off-road models, resistant to wear and bumps, and less prone to failure during long-term high-intensity outdoor operations.

7. CE certification compliance, export无忧： complies with EU agricultural machinery safety and quality standards， equipped with emergency braking， fan protection net， etc.， can be directly exported to overseas markets， suitable for local large-scale planting scenarios.

II. Core Technical Parameters

Project General Parameters (Multiple models available / Customizable options)

Equipment Type Seating-type power wind-spraying sprayer (Diesel/Gasoline options available)

Power System 12-30HP diesel engine or gasoline engine

Liquid Tank Capacity 200L/300L/400L/450L/500L (Food-grade PE material)

Working Width 16-25 meters (Directional wind-spraying, angle 0-360° adjustable)

Atomization Particle Size 50-120μm (Anti-drift ultra-fine mist)

Application Efficiency 15-25 acres per hour

Travel Speed 3-10 km/h

Drive Mode Two-wheel drive

Grade Climbing Capacity ≤ 45°

Overall Machine Weight 150-650KG (Depends on model)

Core Certification CE Certification

III. Core Functions and Applicable Scenarios

Core Function

✅ Independent high-power operation: Equipped with its own power system, no need for external equipment. Large-scale planting bases can conduct efficient and independent pesticide application.

✅ Precise air-assisted atomization: Strong airflow guides the droplets to penetrate the crop canopy, ensuring even pesticide application on both the upper and lower sides of the branches and leaves, resulting in a 70% improvement in disease and pest control effectiveness.

✅ Comfortable and safe operation: Seated design + hydraulic steering, easy and effortless operation; multiple safety protection devices to ensure the safety of operators.

✅ Long-range continuous operation: Large-capacity liquid storage tank + fuel tank (diesel model), meeting the needs of high-intensity pesticide application throughout the day, without the need for frequent replenishment.

Applicable scenarios

✅ Large-scale orchards (juvenile orchards for citrus, apples, pears, grapes, etc.)

✅ Economic forests, nurseries, tea plantations (large-scale planting bases)

✅ Forest farms, greening seedling bases (large-scale pest and disease control)

✅ Breeding farms, large-scale storage areas (large-scale disinfection operations)

IV. Product Core Structure

1. Enhanced walking chassis: Thick steel plate welded frame, high-groove off-road tires, optional shock absorption, stable in complex terrains

2. Independent power system: Diesel engine / gasoline engine, powerful.

3. Large-capacity liquid storage tank: Food-grade thickened PE material, resistant to acids and alkalis, anti-aging.

4. Air supply and atomization system: High-pressure piston pump, copper anti-drip leakage atomization nozzle (8-18, can be grouped controlled), stable atomization effect

5. Auxiliary configurations: Drug addition port filter, drug return pipeline, spare nozzles/seals, cleaning system, convenient for daily maintenance
