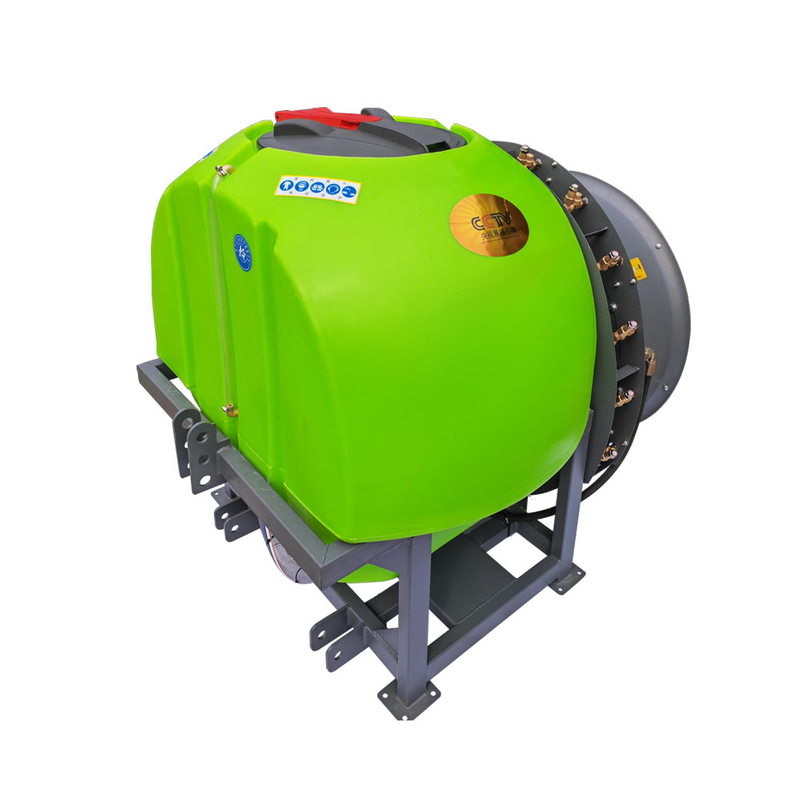

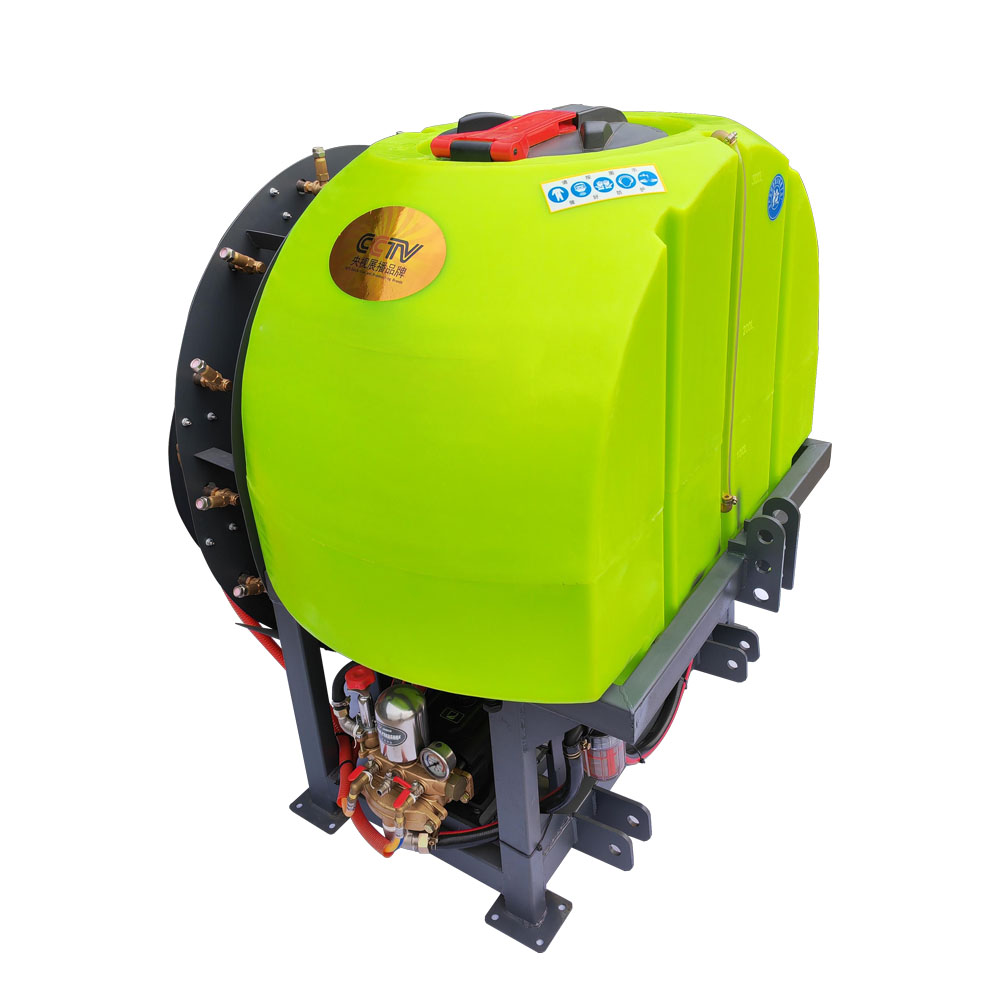

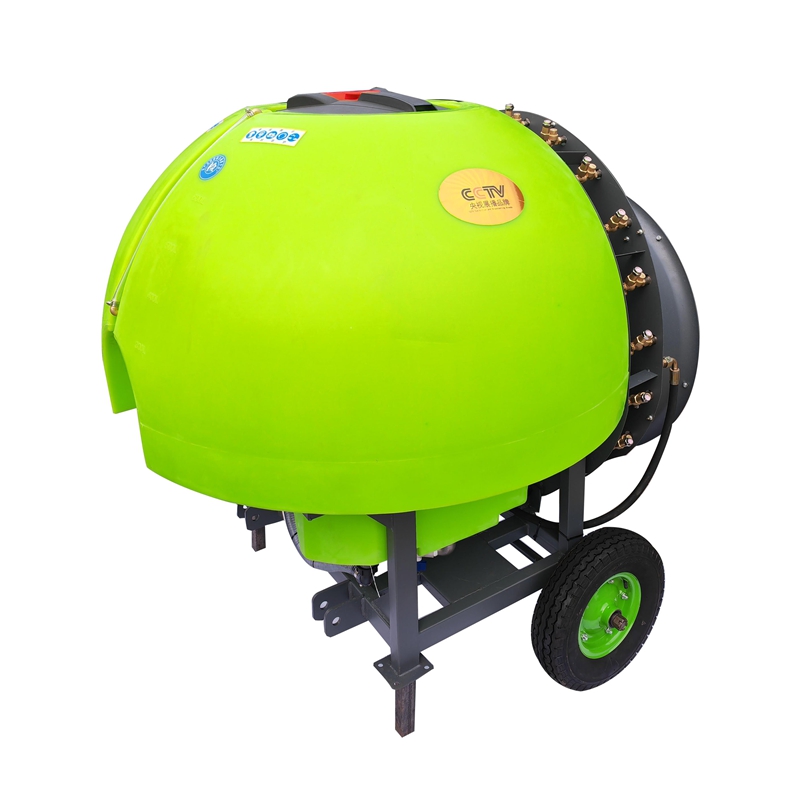

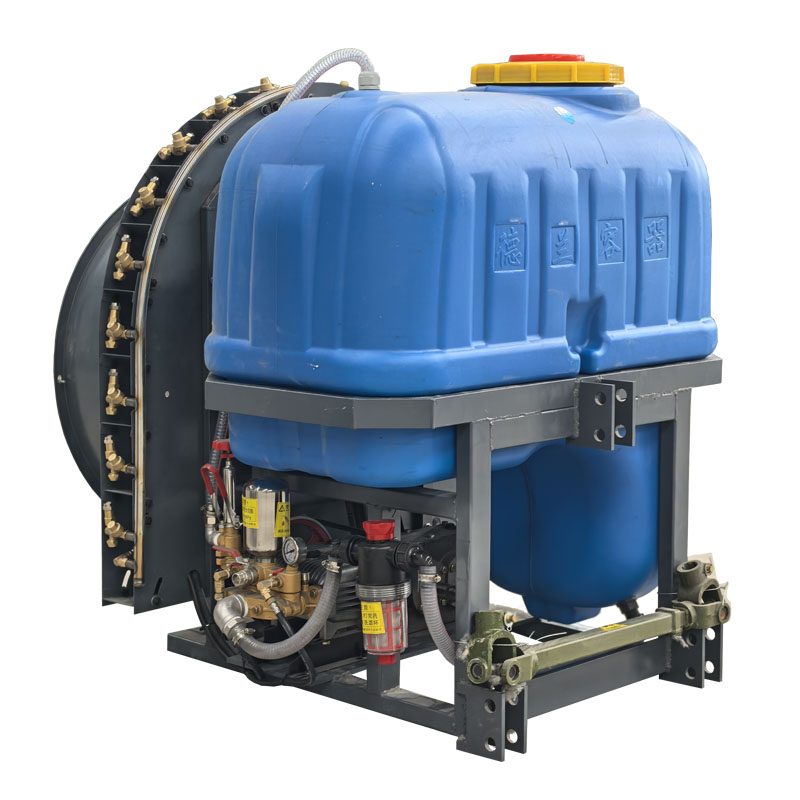

Three-point suspension sprayer

Tractor-mounted sprayer

Core positioning: High-efficiency pesticide application equipment specifically designed for tractors, featuring air-suction atomization and precise spraying. Suitable for disease and pest control in orchards, tea gardens, and field crops. CE certification compliant, capable of exporting to overseas markets.

I. Core Product Advantages

1. Wind atomization technology: The high-pressure fan generates a directional airflow, which turns the atomized liquid medicine into a fog curtain to envelop the crops. The droplets are fine and have strong adhesion, without drift or dead corners. The application efficiency is over 60% higher than that of traditional spraying machines.

2. Suspension adaptation for tractors: The three-point suspension design enables quick connection with 30-90 horsepower four-wheel tractors without the need for separate power. The installation and disassembly are convenient, and it is compatible with the majority of agricultural tractor models.

3. Adjustable spraying range: The outflow angle and spray width can be manually adjusted to adapt to different tree heights (2-8 meters) and row spacings of orchards (such as citrus, apples, grapes, etc.) as well as field crops. This machine can be used for multiple purposes.

4. Durable and sturdy: The body is made of thickened cold-rolled steel plates and treated with electrostatic powder coating, providing corrosion resistance and resistance to bumps. The nozzle is made of copper and wear-resistant material. The fan impeller undergoes dynamic balance testing, and it is not prone to damage during outdoor long-term operation, being corrosion-resistant.

6. Compliant export: Compliant with the EU CE safety certification standards, meeting the requirements for agricultural machinery entry into overseas markets.

II. Core Technical Parameters

Project: Standard Parameters (Customizable)

Matching Power: Tractor with 30-90 horsepower

Tank Volume: 300L/400L/500L/600L (Optional)

Working Width: 16-25 meters (Adjustable)

Atomization Particle Size: 50-150 μm (Fine mist, strong adhesion)

Fan Diameter: 600mm/700mm/800mm (Chooseable; driven by the rear output shaft of the tractor)

Nozzle Quantity: 10-24 (Copper anti-drip leakage nozzles)

Suspension Method: Three-point hydraulic suspension (Seamless integration with the tractor)

Overall Weight: 150-350 kg (Dependent on tank volume)

Certification: CE Certification

III. Core Functions and Applicable Scenarios

Core function

✅ High-pressure atomization: The liquid medicine is atomized into fine mist, penetrating through the branches and leaves of the crops, and evenly applied on both sides of the plants.

✅ Directional air delivery: The airflow guides the mist droplets, preventing the spread of the medicine and reducing pollution to surrounding crops and the environment.

✅ Flexible adjustment: The spray width, air outlet angle, and medicine flow rate can all be adjusted, suitable for different growth stages of crops.

✅ Efficient spraying: The operation efficiency can reach 8-15 acres per hour, significantly saving labor and medicine costs.

✅ Anti-drip and anti-leak design: The nozzle automatically prevents dripping after the machine stops, avoiding excessive spraying of medicine in local areas and causing plant burn.

Applicable scenarios

✅ Orchard type: Mature or young orchards of citrus, apple, pear, peach, grape, kiwi, etc.

✅ Economic crops: Tea gardens, wolfberry, blueberry, mulberry, etc. dwarf economic crops

✅ Field crops: Corn, cotton, sugarcane, peanut, etc. medium to tall field crops

✅ Other scenarios: Nursery, forest farm, pest and disease control of greenery seedlings and foliar fertilizer spraying

IV. Product Structure Components (Core Components)

1. Large-capacity medicine box: Made of food-grade thick plastic or cold-rolled steel, resistant to acids and alkalis, without leakage, equipped with a stirring device to ensure uniform drug liquid distribution.

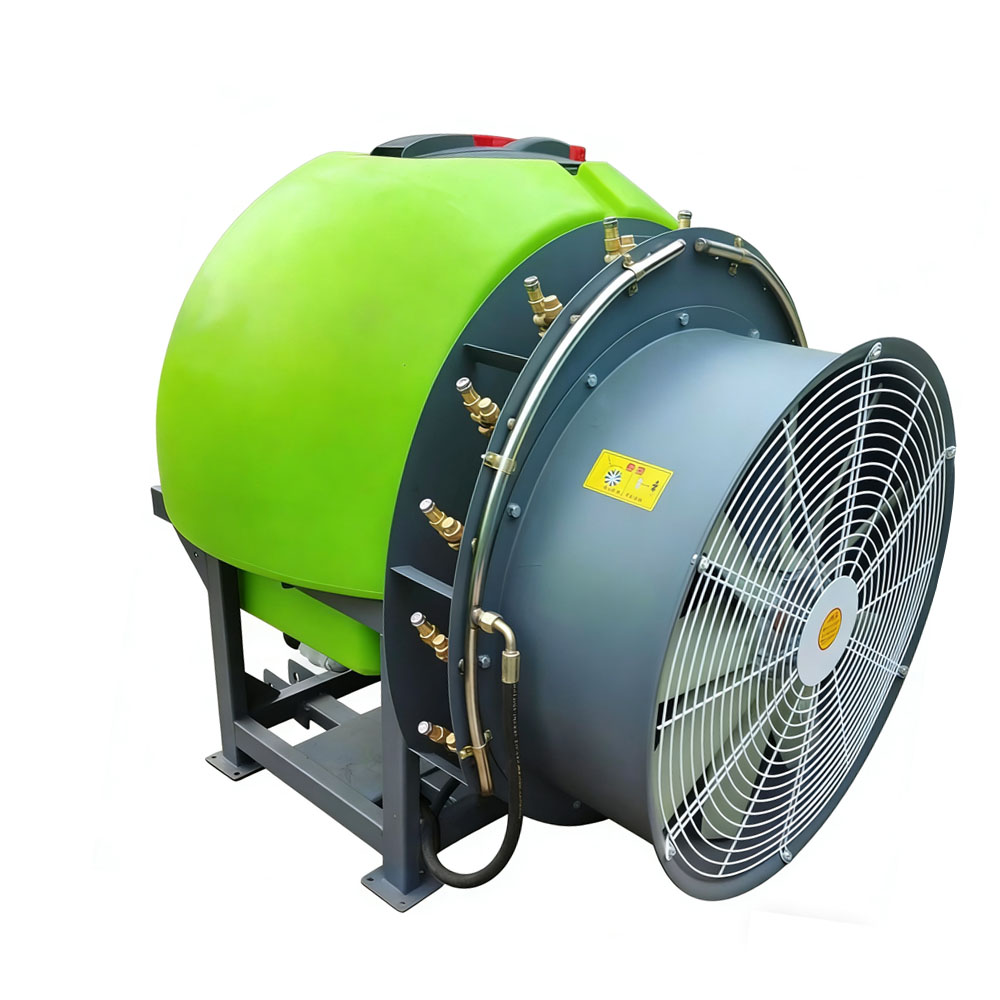

2. High-pressure fan: High-strength impeller, powerful wind force with low noise, powered by the rear output shaft of the tractor.

3. Atomizing spraying system: Copper anti-drip spray head + high-pressure pipeline, resistant to pressure and corrosion, with stable atomization effect.

4. Three-point suspension frame: Welded with thick steel, treated for rust prevention, linked to the tractor's hydraulic system, allowing adjustment of the working height.

5. Safety protection device: Fan guard net, pipeline explosion-proof valve, ensuring personal and equipment safety during operation.
